Main features:

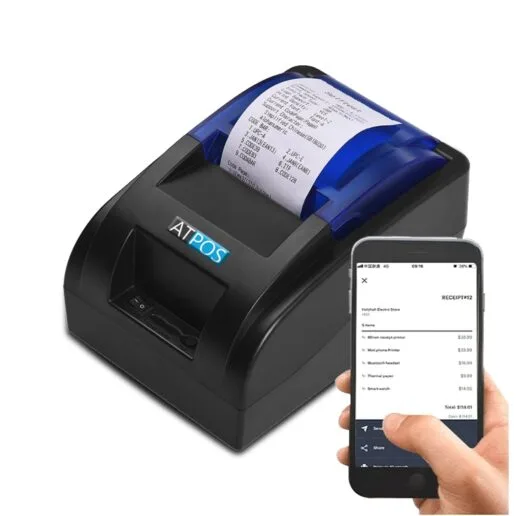

1. Bluetooth Connectivity Enables Wireless Mobile Printing capability.
2. Easy paper-roll installation, Easy maintenance
3. Low consumption, low operation cost
4. Compatible with ESC/POS printing instruction set
5. Support for a variety of international language character
6. Mini Pos Printer, small size, saving space, easy to use on your desk
7. Pos Receipt Printer for Restaurant, Sales, Kitchen, Retail, etc
Model | H58BT |
---|---|
Printing Method | Thermal Receipt Printer – Not Label/Sticker |

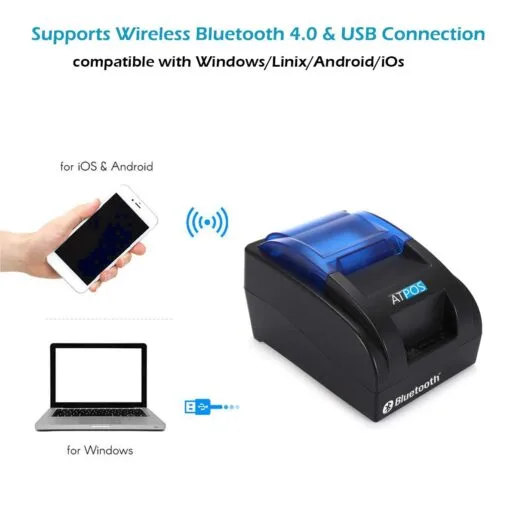

Interface | Bluetooth + USB |

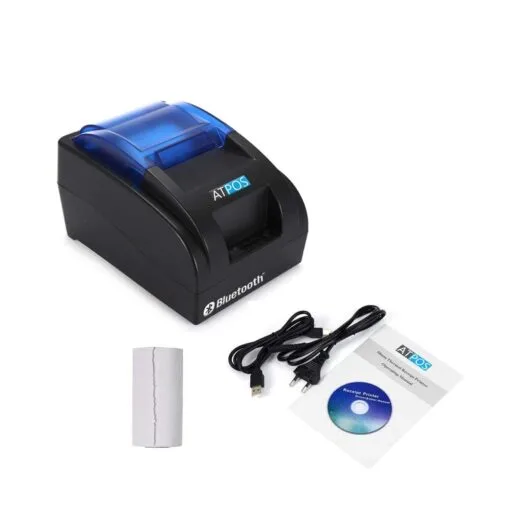

Standard Accessories | Roll Paper x 1, CD-ROM (Drivers, Utility Software, Manuals), USB Cable, Power Cable |
Weight | 0.75kg |
Technical Specifications
Brand | Atpos |
---|---|
Font | 9×17 / 12×24, Hanji Font: 24×24, Thai Font: 9×24 / 12×24 |
Character Size (W x H) | 0.88×2.13mm / 1.25x3mm, Hanji Font: 3x3mm, Thai Font: 0.88x3mm / 1.25x3mm |
Character Set | 95 Alphanumeric, 18 set International, 128×43 pages (including user-defined page) Hanz Barcode: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODEBAR (NW-7), CODE93, CODE128, GS1-128, Gs1 DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D Gs1 DataBar Composite Symbology |
Characters Per Inch | 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font : 22.6cpi / 16.9cpi |
Installation | Horizontal |
Buffer | 2048K bytes, NV Flash: 256K bytes |
Print Speed | Max 90mm/s |
Dot Density | 384dots/Line(8dots/mm,203dpi) |
Paper (Roll Paper (Width & Roll Diameter) | 57.5 ± 0.5 (W) × dia. 83.0 |
Power | DC +12V ± 5% |
Operating | Approx. 3A (Mean/Print ratio 18% with print pattern) |
Standby | Approx. 0.1A (Mean) |
Cash Drawer Power Supply | DC 12V 1A |
Cash Drawer Integration | Yes Supported |

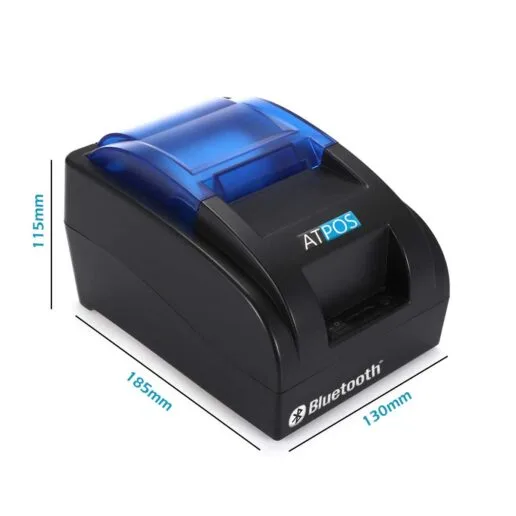

Dimensions (D x W x H) | 185x115x130mm |
Printer Head Life | 100KM (Print Density <12.5) |
Cutter | Manual Blade 100,000 Times |
Warranty | 1 year |
